Custom made Assembled Prefab Warehouse Buildings - Modular Design

Name: Custom made Assembled Prefab Warehouse Buildings Modular Design
Brand: Housespace
Price: 1 USD

Custom made Assembled Prefab Warehouse Buildings - Modular Design Manufactures

Place of Origin : China

Brand Name : Housespace

Certification : GB

Payment Terms : L/C T/T

MOQ : 1 Set

Price : To Be Discussed

Packaging Details : Local Project

Delivery Time : 12 weeks upon design confirmed

Supply Ability : TBD

Model Number : Custom-made

Contact Now

Custom made Space Frame Warehouse Buildings

Description:

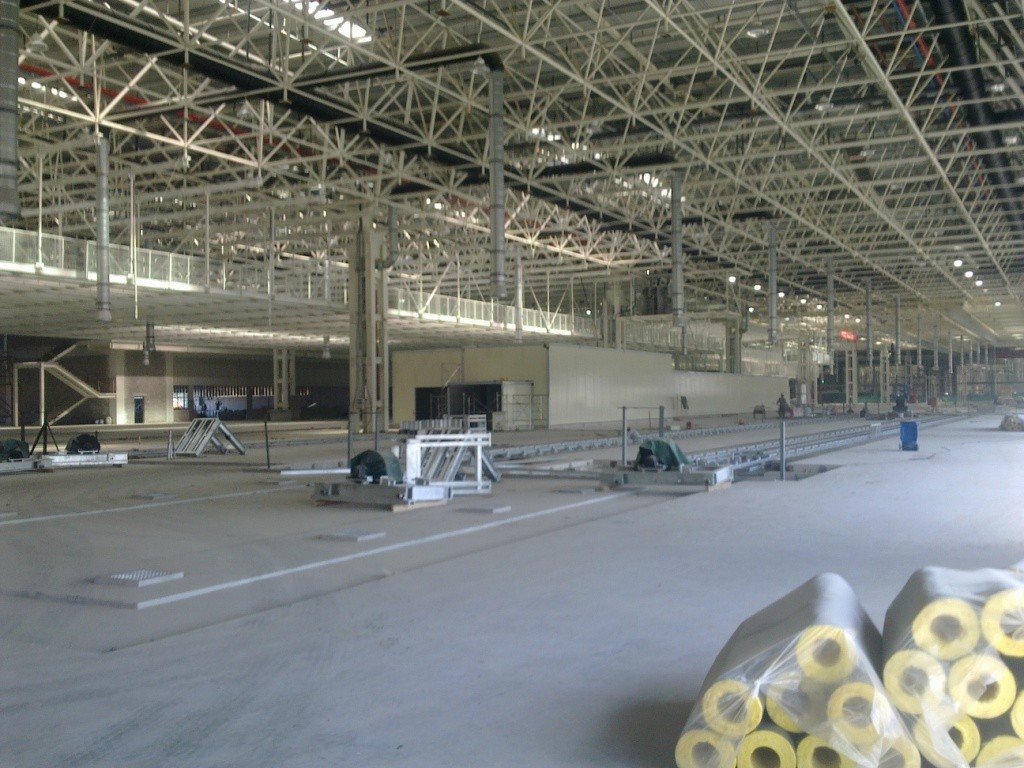

Main Assembly Warehosue for Mercedes-Benz, Beijing. The standard follows Benz globle construction requirements. Space frame roof design to achieve big span.

Specifications of Each Unit:

Steel Structure Warehouse

Item	Name	Specs and Data
Basic Specs	Length	Custom-Designed
	Width	Custom-Designed
	Height	Custom-Designed
	Slope of Roof	1:20, 1:10
	Floor	≤3 Floor
Standard Items	Column	Welded I beam and hollow section, Q235 or Q345, with paint finishes
	Beam	Welded I beam and hollow section, Q235 or Q345, with paint finishes
	Purlin	C,Q235 or Q345, with paint finishes
	Upper Floor	Designed main beam, secondary beam and purlin
	Wall Panel	50,75,100mm Sandwich Panel
	Roof Panel	50,75,100mm Sandwich Panel
	Door/Gate	Insulated color metal door/gate (swing or sliding)
	Window	PVC/Alum Window, size: Custom-made
Optional Items	Ceiling	Mineral fiber ceiling or Alum ceiling
	Window	PVC swing window, top-hang window; Alum. sliding window, Alum. swing window, Alum. Top-hang window. Louver window
	Door	Security door, fire-rated door, sliding door or swing door
	Electrical System	We can provide design and installation method.
	Plumbing and Sanitary	We can provide design and installation method.
Structure Data	Roof live load	50kg/m2
	Floor live load	200kg/m2
	Wind load	0.45KN/m2
	Earthquake Intensity
